Topics : Special sized Jumper Chip Products
Features
  • This is special sized jumper chip product.
  • Since all sizes have common width of 0.5mm, usability around tight circuit pattern improves.
  • Complex wiring design will be eased, and freedom of circuit design increases.
  • Since sizes of 4mm or longer use glass-epoxy substrate, benting strength・impact resistance are vastly improved.
  • Availability of supply by taping enables mounting by normal mounter.
  • Reflow, Flow solderings are applicable.
  • Europe RoHS compliant product.
    		•
    Product Name

    JPC** : 2005 size: 20 , 3005 : 30 , 4005 : 40 , 5005 : 50 , 6005 : 60
    Catalog

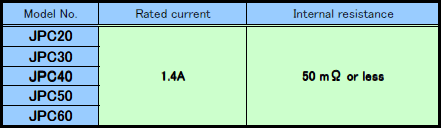

    Specification

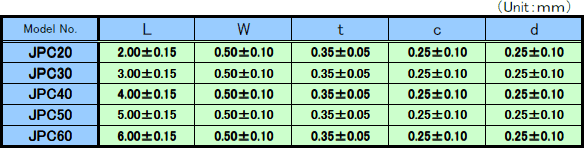

    Dimensions

    Applications
  • Jumper connection on single side board.
    		•
    Sample Status

    JPC20/30:Available by taping.

    JPC40/50/60: Available by bulk.
    Mass Production

    JPC20/30:Production can start by 1 month leadtime.

    JPC40/50/60:Production can start by 3 month leadtime.
