Topics : Wide Terminal Type High Wattage Chip Resistor
Features
  • Surface mount type, 3W , 5W rated of high wattage type.
  • Primary circuit of power supply is suitable application.
  • Due to wide side terminal structure, solder joints hold high reliability.
  • Availability of supply by taping enables mounting by normal mounter.
  • 1Ω～1MΩ, wide resistance range is covered.
  • Reflow, Flow solderings are applicable.
  • Europe RoHS compliant product.
    		•
    Product Name

    WCR**

    ** : 11050 size: 110 , 16080 size: 160
    Catalog

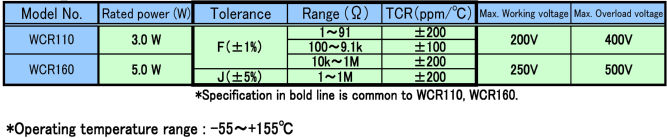

    Specification

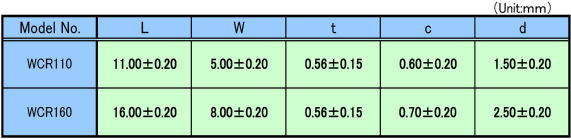

    Dimensions

    Applications
  • Primary circuit of power supply.
    		•
    Sample Status

    Available.
    Mass Production

    Production can start by 2 month leadtime.
